OUR PRODUCTS
FLEXI STOOLS

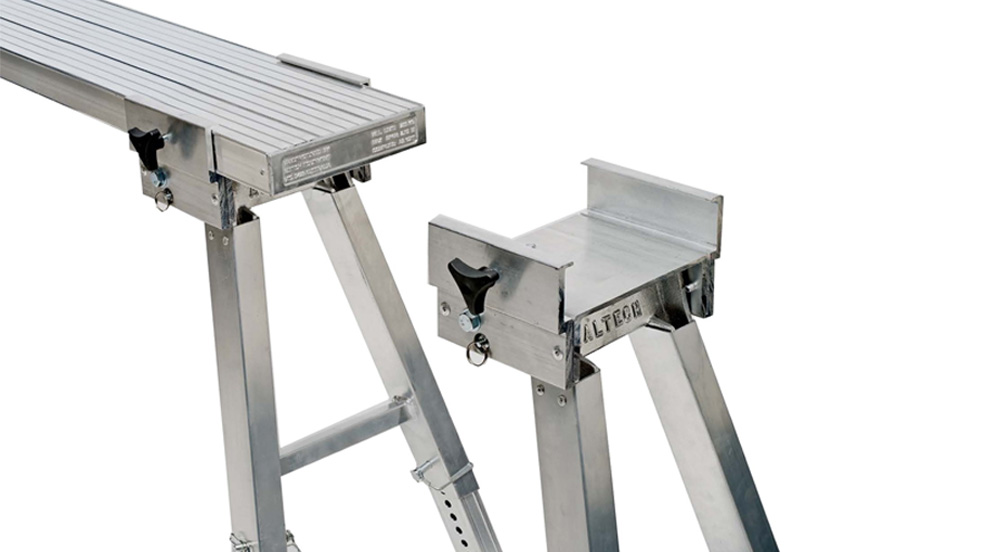

The Altech Flexi Stool is our unique solution to industry demand for a ‘mix and match’ stool system.

A product of years of intensive research and development, this innovative product delivers total flexibility and superior functionality over any other work platform available today.

Designed for versatility, simply choose the most suitable combination of platform length and leg height that best suits the job.

All that’s needed is to slide two quick release detachable Flexi Legs onto an Altech Supasafe Plank. If a longer platform is needed, simply add a third Flexi Leg to the system and create a work platform up to 6m long. Altech Flexi Legs are also designed to work with other plank brands, and come in Low, High and Ultra High sizes. Altech Flexi Legs are available in an Economy & Ultimate version. They are fully height adjustable and lock securely and safely into position.



Options and Specifications

Available in 2 types:
Economy & Ultimate

Low: 425mm-575mm
High: 550mm-800mm
Ultra High: 775mm-1100mm

For a single span platform: Use an Altech Supasafe Plank of any length from 1.25m to 3.5m along with two Altech Flexi Legs of the required height.

For a longer platform: Use an Altech Supasafe Plank of any length from 4m to 6m along with three Altech

Flexi Legs inserting one leg in the centre.

Altech Supasafe Flexi Legs can also be used with most other manufacturers’ planks.

Industrial duty rating.
Working Load Limit: 200kg at
a maximum span of 2.75m.

Exceeds Australian/New Zealand Standards AS/NZS 1576.5-1995 Cl. 7

Altech Flexi Stool system with detachable legs bears Australian Patent No. 2008100429

Feature Comparison

  Economy Ultimate
Slides & Clamps on • •
Height Adjustable • •
Quick-release leg clips • •
Rubber Feet • •
Non-Folding Legs •
Folding Legs   •



Check out our flexistools double range








Sturdy cast aluminium hinge bracket incorporates spigots to receive legs at optimum angle. Clamping bolt firmly secures the Flexi Leg to the plank
Spring loaded plunger pin locks the legs securely in position
Dimpled special grade rubber feet for a firm grip.
Quick release and set leg clips provide fast height adjustment. Legs are fully height adjustable.		 The economy version with non-folding legs.

Assembling the Altech Flexi Stool is quick and easy

  1. Select an Altech Supasafe Plank or any other plank, in a length that best suits the job
  2. For the height required, choose Low, High or Ultra High legs
  3. Slide the Flexi Legs onto each end of the plank in the recommended positions
  4. If a platform longer than 3.5m is required, use a longer plank and simply slide a third Flexi Leg to the centre of the plank
  5. Hand-tighten the clamping bolts to secure the Flexi Legs to the plank
  6. Ensure that the plunger pins have locked the legs in the ‘open’ position
  7. Adjust leg height to obtain optimum platform height
  8. The Altech Flexi Stool is now ready to use
